Prefabricated steel structure warehouse & office building

Qingdao Xinguangzheng Steel Structure Co., Ltd. (Stock Code: 834422)

INTERNATIONAL PROJECT

CASE PRESENTATION

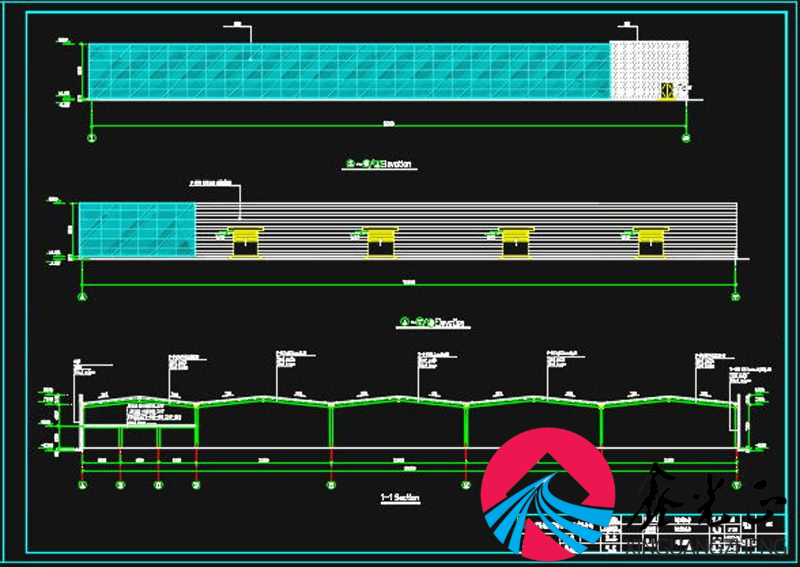

Prefabricated steel structure warehouse&office building.
Located in Oran city, Algeria.
Size: 104*94*8.5m,total building area: 9776 ㎡
Front and office part: Glass Curtain and Aluminum Glass Curtain.
XGZ service: Warehouse office design, manufacturing and erection guidance .

Building Options & Specifications

1. Options
   1)We can supply steel structure building for workshop,warehouse,hangar,hotel,apartment, shopping mall,container house,poultry house, modular house, garage, bridge crane, various steel structure materials etc.
   2)We can also professionally design exactly according to customers’ drawings and detailed requirements.
2. Specifications
   1) Size(m):

Width * Length * Eave Height;
2)Type:

Single slope, double-slope, Multi-slope;

Single span, double-span, Multi-span;
Single floor, double-floor,Multi-floor;

3) Base: steel foundation bolts

4) Steel frame:

Material Q345(S355JR)(Gr50)or Q235(S235JR) steel;

All bolts connection;

Straight cross-section or Variable cross-section;

5) Bracing: X-type or V-type or other type bracing made from angle, round bar, etc ;

6) Wall & Roof galvanized C/Z Purlin: Size from C80~C300; Z100~Z300;

7) Roof and wall panel:

Galvanized corrugated color steel sheet 0.5mm thick;

Sandwich panel with glass fiber, ROCK WOOL, PU etc insulation, thickness around 50mm~200mm;

8)Window:UPVC or Aluminium Alloy.

9)Door:Sliding or Roller shutter door.

10) Gutter material:Color steel sheet or galvanized plate or stainless steel.

11)Rainspout: UPVC pipe.

12)Accessories: Skylight panel, Ventilation, Fasteners etc.

13)Surface process: Shot blasting Sa2.5;Two-coats of Anti-rust Painting!

14) Packing: Experienced and professional steel pallet packing which is much easier for loading and un-loading!

Advantages of steel structure building than concrete structure:

1. The total weight of the building is light: about half of the concrete structure weight, which can reduce the foundation cost.
2. Fast construction: the construction period is shortened by 1/4 to 1/6 compared with the traditional concrete structure.

3. Strong flexibility: large open span design, indoor space can be divided into multiple programs to meet the different requirements of owners. In particular, the exhibition center can adopt the pipe truss structure, which is easy to realize the large space function, increase the space height, and has the characteristics of beauty and comfort. This structure has been widely used in airport projects.

4. Good energy-saving effect: the wall is made of factory-made steel components, or light-weight energy-saving standardized C-shaped steel, square steel, sandwich panel, high processing precision, good thermal insulation performance, good earthquake resistance.

5. Good environmental protection effect: greatly reduce the quantity of sand, stone, ash, environmental protection and energy saving during construction.

All of our products have already been authorized through ISO9001 quality system. We have professional quality control departments. We also have a very strict quality control system for the products. Because we want to be responsible for every product quality we sold. Our group company has set up a very good reputation for many years. We will offer the products resting assured to customer.

We are professional steel structure manufacturer which has been specialized in all kinds of steel structure buildings for 24 years in China,and export to about 80 countries all over the world,we have strong engineers team,fabrication teams and construction teams,so we can provide excellent one-stop service,

If you have any requirements about steel structure buildings,kindly pls send to me freely,kindly pls assured that you will satisfy with our quality,price,service and etc very well,long terms win-win cooperation is our work target forever!

Warmly welcome you to our group factory and our construction site for a visit!
